| Specification | |
| Display type | 262k color TFT,Transmissive |

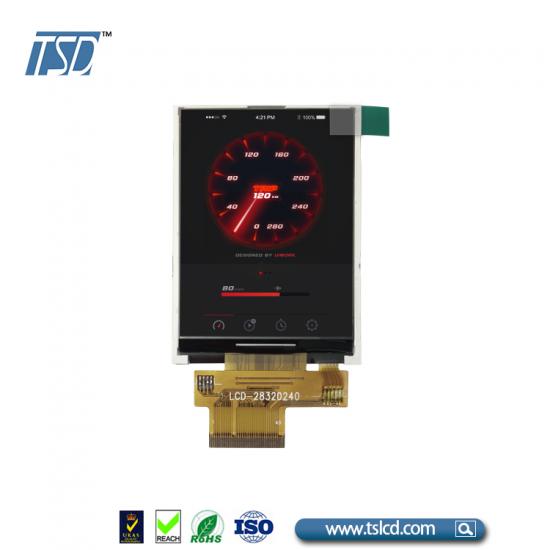

| Description | QVGA 240x320 2.8 tft lcd |
| Display Colors | 16.7M Dithering |
| Outline Dimension(mm) | 50x69.2x3.35 |
| A.A.(mm) | 43.2x67 |
| Driver IC |
ILI9341 |
| Resolution(dots)_ | 240*RGB*320 |
| Viewing Direction | 12H |
| Operating temperature(°C) | -20-70 |
| Storage temperature(°C) | -30-80 |
| Number of Pixel(pixels) | 240(H)x 3RGB x 320(V) |
| Dots Pitch | 0.18x0.18 |
| Color Configuration | RGB stripe |
| Backlight | 4 LEDs, White |
| Weight(g) | TBD |
| Interface | 8080 system 8/16 bits parallel interface |
| Brightness |
280 cd/m2 |
