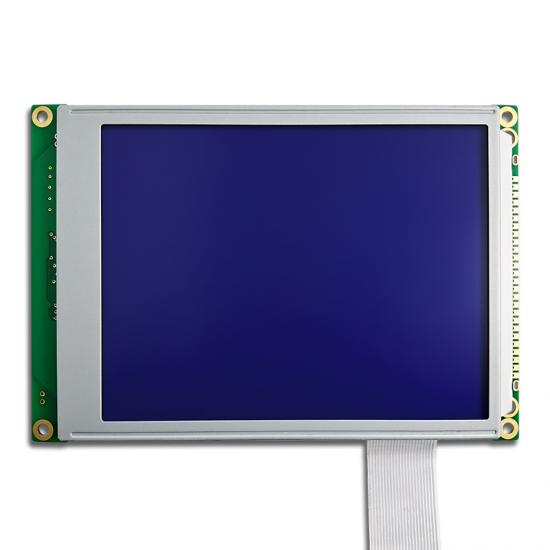

TSD 320x240 dots Matrix COB LCD module with bigger size



  • Model Name: TSM320240-3
  • LCD Type: 320*240 dots lcd
  • Outline size:122*92mm
  • Viewing angle: 6H
  • Driver IC: RA8835
  • Voltage:5V
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

The TSM320240-3 is a 320*240 dots dot-matrix LCD module. It has a STN panel composed of 320 segments and 240 commons. The LCM can be easily accessed by microcontroller via 6800 series interface. We have STN-YG,STN-blue, FSTN, Positive/negative, Transflective/transmissive.Can customize the parameters according to your requirements such as polarizer type. lcd mode. connection way. operating Voltage.etc.

Item Spec.
Display Character 320x 240
Display type STN Yellow Grenn; STN Blue; FSTN
Description 320x240 graphic lcd module
Model name TSM320240-3
Outline Size 160x109x14mm
View Area 122x92mm
Active Area 115.05x86.15mm
Viewing angle 6 o'clock
MOQ 500pcs
Number of pins 20 pins
Voltage 3.3V
IC RA8835
Operating temperature -20-70℃
Storage temperature -30-80℃
Backlight LED



Drawing:

Interface Description:

PIN SYMBOL
1 VDD
2 VSS
3 V0
4 R/W
5 RD
6 CS
7 CD
8 RST
9 DB0
10 DB1
11 DB2
12 DB3
13 DB4
14 DB5
15 DB6
16 DB7
17 BUSY
18 INT
19 BLA
20 VOUT



Applications:

For our TSM320240-3 dots Graphic lcd , it's widely using in industrial product, Industrial equipment and Industrial controllers, mechanical displays.etc.

Product Features:

1. TSM320240-2 dots lcd with 16pins

2. 5v working Voltage

3.RA8835RB0086 IC chip

4.font table support English/European/Japanses/Russian

5. TSD have full ranges of mono lcd including COB COG OLED.E-ink display. customized design are warmly welcome.





Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
