New Coming IPS TFT LCD on Nov.2018
Team Source Display just finished Electronics 2018 in Mess Munchen Germany.Thank for all the old and new customers.
Poster All the IPS series TFT LCD module display items as below .
|
TST013A2402HS | |
| LCD Size | 1.3 inch | |
| Outline Size | 35.5x38.23x1.4 mm | |
| Resolution | 240xRGBx240 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | ALL | |
| Interface | 3-line SPI | |
| Brightness | 200 nits,VL=6.2V,IL=20mA | |
| Driver IC | ST7789V | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST154HVBS-04 | |
| LCD Size | 1.54 inch | |
| Outline Size | 31.82x33.87x1.8 mm | |
| Resolution | 320xRGBx320 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | All | |
| Interface | MCU8/16-bit | |
| Brightness | 300 nits,VL=3.1V,IL=60mA | |
| Driver IC | ST7796S | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST020QVHS-03 | |
| LCD Size | 2.0 inch | |
| Outline Size | 35.6x48.7x2.35 mm | |
| Resolution | 240xRGBx320 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | All | |
| Interface | MCU8/16-bit | |
| Brightness | 400 nits,VL=9.3V,IL=20mA | |
| Driver IC | ST7789V | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST024QVHI-23 | |
| LCD Size | 2.4 inch | |
| Outline Size | 42.72x60.26x2.21 mm | |
| Resolution | 240xRGBx320 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | All | |
| Interface | MCU16-bit | |
| Brightness | 250 nits,VL=9.3V,IL=20mA | |
| Driver IC | ST7789V | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST019QVBS-01 | |
| LCD Size | 1.9 inch | |
| Outline Size | 25.8(H)x49.72(V)x1.43(T) mm | |
| Resolution | 170xRGBx320 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | All | |
| Interface | MCU8-bit/4-line SPI | |
| Brightness | 330 nits,VL=3.2V,IL=60mA | |
| Driver IC | ST7789V | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST035WVBS-51 | |
| LCD Size | 3.46 inch | |
| Outline Size | 40.97(H)x94.4(V)x2.78(T) mm | |
| Resolution | 340xRGBx800 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | All | |
| Interface | 3SPI+RGB16-bit | |
| Brightness | 330 nits,VL=18.6V,IL=20mA | |
| Driver IC | ST7701S | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST035QVHS-46 | |
| LCD Size | 3.5 inch | |
| Outline Size | 77(H)x64(V)x3.0(T) mm | |
| Resolution | 320xRGBx240 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | All | |
| Interface | RGB24-bit | |
| Brightness | 300 nits,VL=18.6V,IL=20mA | |
| Driver IC | ST7272A | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST035HVQI-45 | |
| LCD Size | 3.5 inch | |
| Outline Size | 58(H)x98(V)x3.45(T) mm | |
| Resolution | 320xRGBx480 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | ALL | |
| Interface | MCU16-bit | |
| Brightness | 300 nits,VL=3.2V,IL=120mA | |
| Driver IC | ILI9488 | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|
TST043WVBI-54 | |
| LCD Size | 4.3 inch | |
| Outline Size | 60.9(H)x104.5(V)x1.9(T) mm | |
| Resolution | 480xRGBx800 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | ALL | |
| Interface | 3-SPI+RGB24-bit | |
| Brightness | 250 nits,VL=15.5V,IL=40mA | |
| Driver IC | ILI9806E | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | Optional | |
|

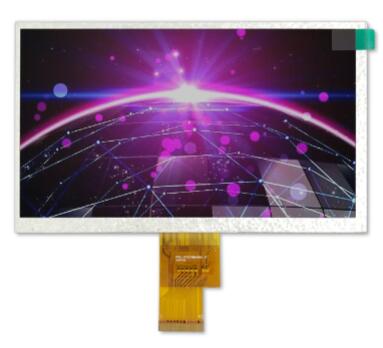

TST070XVZH-05BC | |
| LCD Size | 7.0 inch | |
| Outline Size | 164.9(H)x100(V)x3.5(T) mm | |
| Resolution | 1024xRGBx600 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | ALL | |
| Interface | LVDS | |
| Brightness | 1000 nits,VL=18V,IL=200mA | |
| Driver IC | EK79001+EK73215 | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | with CTP(FT5446) | |
|
TST101WXBN-17C | |
| LCD Size | 10.1 inch | |
| Outline Size | 229.7(H)x149.15(V)x5.0(T) mm | |
| Resolution | 1280xRGBx800 | |
| Driving Element | a-Si TFT active matrix | |
| Display Mode | Normally Black/Transmissive | |
| Viewing Direction | ALL | |
| Interface | LVDS | |
| Brightness | 1000 nits,VL=12.8V,IL=360mA | |
| Driver IC | HX8861 | |
| Operation Temperature | -20℃ - +70℃ | |
| Touch Solution | with CTP(GT9271) | |
Contact our sales for lastest price freely!
