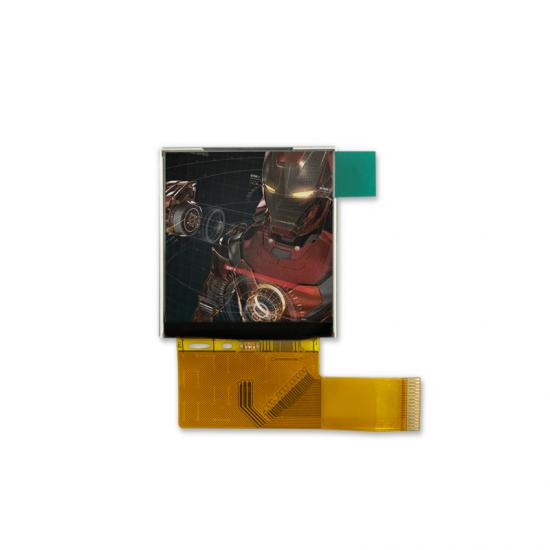

TSD IPS 1.54 inch Square 320x320 mcu TFT-LCD Module

  • Model Name: TST154HVBS-04
  • LCD Type: 1.54 inch TFT LCD display
  • Resolution: 320x320
  • Viewing angle: All o'clock
  • Brightness: 280 cd/m2
  • Driver IC: ST7796S
  • Interface: MCU 8/16 bits
  • Touch Screen: without Capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

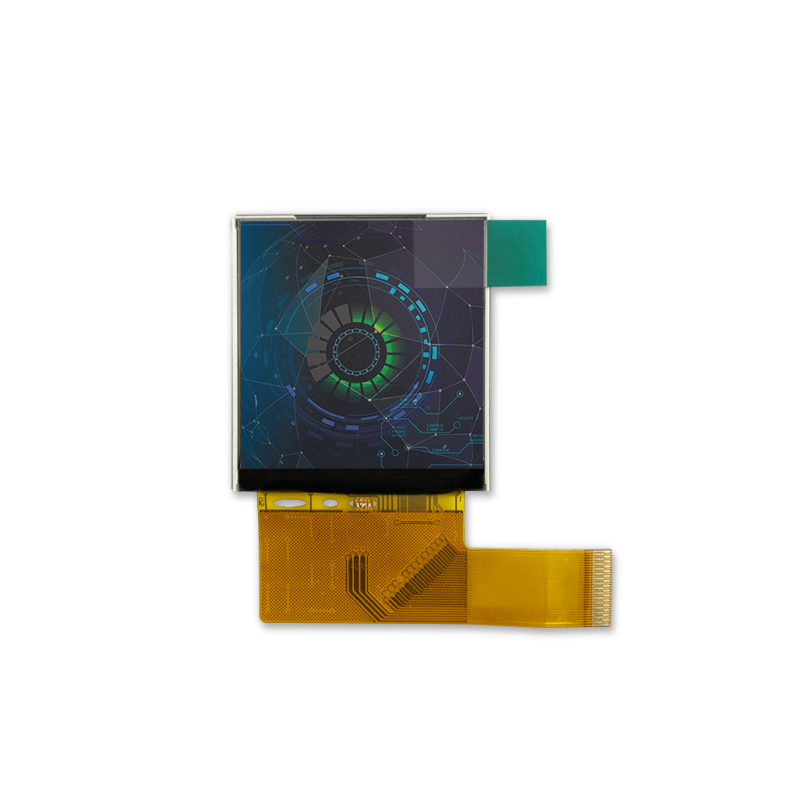

TST154HVBS-04 is a 1.54 inch square tft lcd module in 320x320 resolution, it is MCU 8/16 bits in 31 pins, and could be customed for other pinmap. Brightness is 280 nits. It is suitable for indoor application, such as smart watch, thermostat control display, hybrid recorders, temperature measurement device etc. Backlight current is 60mA and backlight voltage is 3.1V, with 3 backlight LEDs. This 1.54 inch TFT LCD module is designed with ST7796S, viewing direction is all o'clock, color depth is 65K, white backlight and transmissive type.


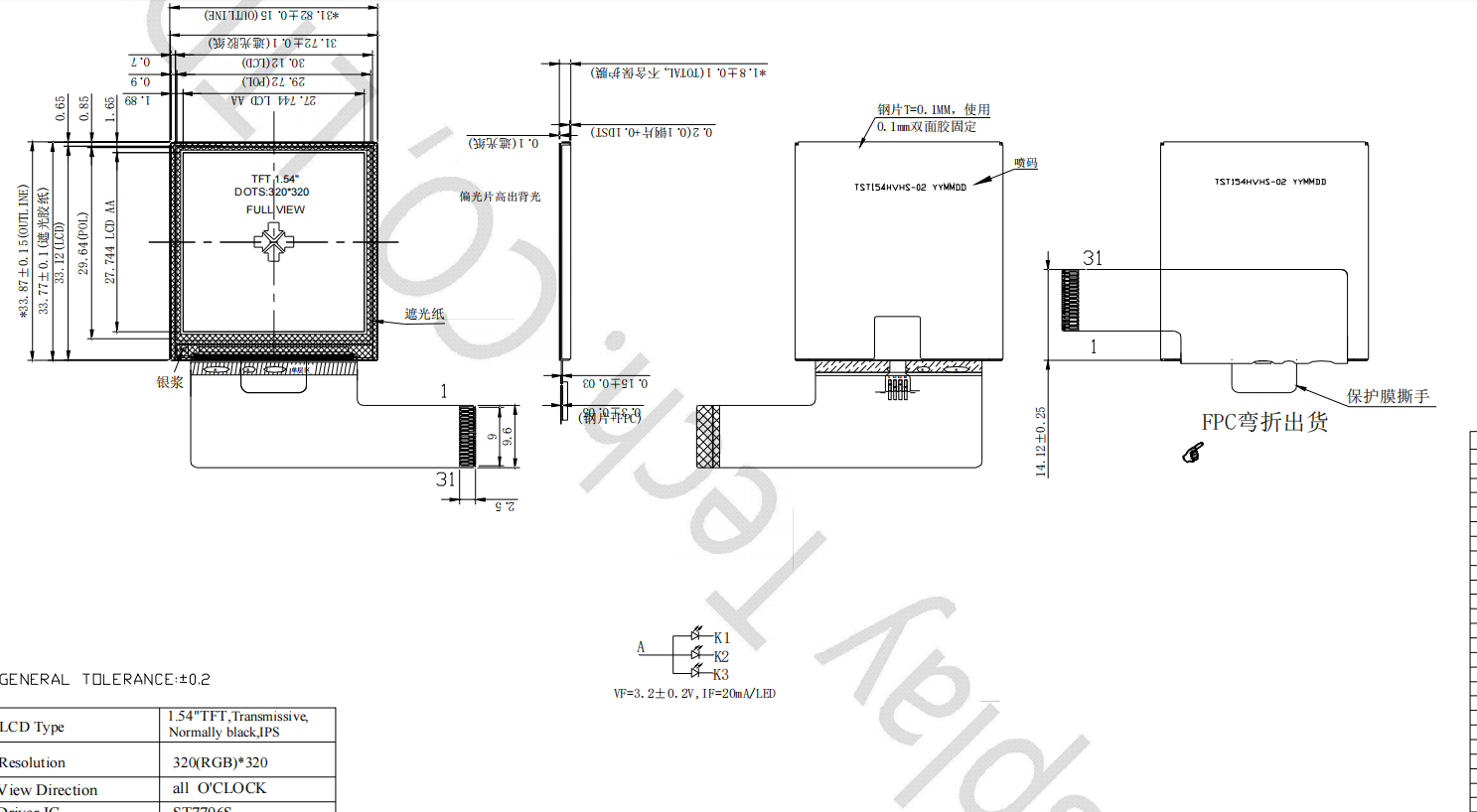

Drawing:




Specifications:



General Specification
Part No.  TST154HVBS-04
Outline Dimension(mm)

31.82×33.87×1.8

Active Area(mm) 27.744×27.744
Resolution(dots) 320x320
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 320(H)xRGBx320(V)
Touch panel  w/o CTP
Driver IC ST7796S
Pixel arrangement RGB-stripe
Display mode Normally black, IPS, 1.54 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU 8/16 bits
Module lifetime(Hours) 20,000-30,000





Pins Description
Pin No.  Symbol Description
1 GND Ground
2 IM0 IM0: MCU 16 bits, DB0-DB15. IM0: MCU 8 bits, DB0-DB7.
3 RESET Reset input signal
4-19 DB15-DB0 16bit data bus
20 RD Read signal input pin
21 WR Write signal input pin
22 DC Data/Command Selection pin
23 CS Chip select signal, low active
24 TE Tearing effect output signal
25 IOVCC Power supply for I/O: 1.8-+2.8/3.3V
26 VCC Power supply for +2.8/3.3V
27 GND System Gournd. (0V)
28 LEDK3 Backlight K Cathode input pin
29 LEDK2 Backlight K Cathode input pin
30 LEDK1 Backlight K Cathode input pin
31 LEDA Backlight A Cathode input pin




Applications:



This small square lcd display is suitable for thermostat control display, hybrid recorders, temperature measurement device.




Product Features:



TST154HVBS-04 is a square TFT display module, This mode1.54 inch diagonally resolution in 320 horizontal by 320 vertical pixel array). Each pixel is divided into Red, Green, Blue dots which are arranged in 2 domain stripe and this panel can display 65K colors. Regarding backlight, brightness is 280 nit and 3 LEDs, current is 60mA  and voltage 3.1V. Contrast ratio is 800:1.
