TSD 10.1 inch 1280x800 resolution TFT lcd module with LVDS interface

  • Model Name: TST101WXHE-83B
  • LCD Type: 10.1 inch TFT LCD display
  • Resolution: 1280x800
  • Viewing angle: All o'clock
  • Brightness: 1000 cd/m2
  • Surface treatment: Anti-Glare
  • Interface: LVDS
  • Touch Screen: without
  • Operating Temperature: -30 ~ +85℃
  • Storage Temperature: -40 ~ +85℃





Description:



TST101WXHE-83B is 10.1 inch 1280x800 resolution IPS tft lcd display, coming out with 40 pins LVDS interface. It's landscape screen, normally black, transmissive TFT LCD module. Outline dimension of LCM is 229.1x148.9x4.35mm, active area is 216.96x135.6mm. Display contrast is 800:1, luminance is 1000 cd/m2 typically. Operating temperature is -30 to +85 degree, storage temperature is -40 to +90 degree.




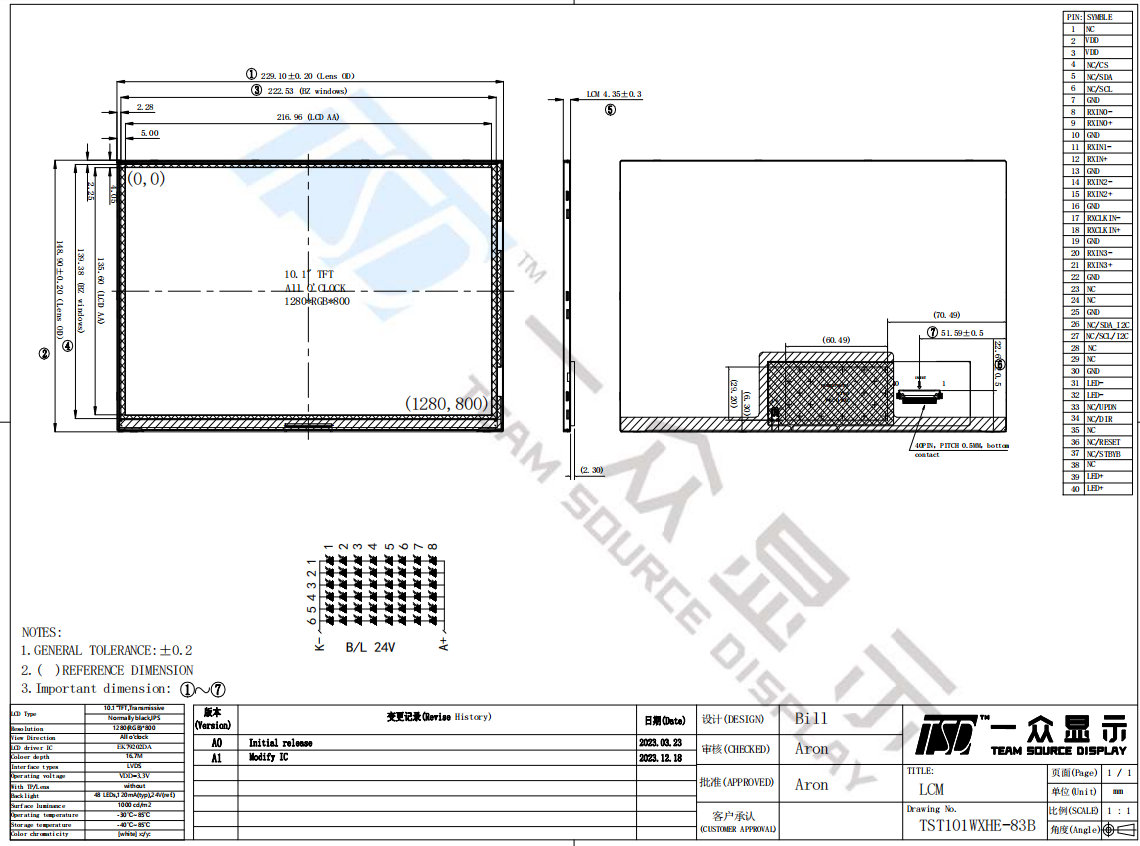

Drawing:



10.1 inch lcd


Specifications:



General Specification
Part No.  TST101WXHE-83B
Outline Dimension(mm)  229.1x148.9x4.35mm
Active Area(mm) 9216.96x135.6mm
Resolution(dots) 1280x800
Operating temperature(°C) -30 ~ +85°C
Storage temperature(°C) -40 ~ +90°C
Number of Pixel(pixels) 1280(H)xRGBx800(V)
Touch panel  without
Brightness 1000 cd/m2
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 10.1 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface LVDS
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 NC No connection
2~3 VDD Power voltage for digital circuit
4~6 NC Must open this pins
7 GND Ground
8 RXIN0- Negative LVDS differential data input
9 RXIN0+ Postive LVDS differential data input
10 GND Ground
11 RXIN1- Negative LVDS differential data input
12 RXIN1+ Positive LVDS differential data input
13 GND Ground
14 RXIN2- Negative LVDS differential data input
15 RXIN2+ Positive  LVDS differential data input
16 GND Ground
17 RXCLKIN- Negative LVDS differential clock input
18 RXCLKIN+ Positive LVDS differential clock input
19 GND Ground
20 RXIN3- Negative LVDS differential data input
21 RXIN3+ Positive LVDS differential data input
22 GND Ground
23~24 NC No connection
25 GND
Ground
26~27 NC
Must open this pins
28~29 NC No connection
30 GND
Ground
31~32 LED-
LED Cathode
33 NC/UPDD No connect/ UP/down selection
34 NC/DIR No connect/ Left/right selection
35 NC No connect
36 NC/RESET No connect/ Grobal reset pin
37 NC/STBYB No connect/ Display ON/Off
38 NC No connect
39~40 LED+ LED Anode




Features:



• Display Resolution: 1280 x RGB x 800

• Wide viewing angle (U/D/L/R): Free viewing direction

• Display up to 16.7M colours

LVDS interface

• Anti-glare front polarizer and front polarizer absorption axis angle is horizontal, rear polarizer absorption axis angle is vertical.

• White LED backlight

• “RoHS” compliance.
