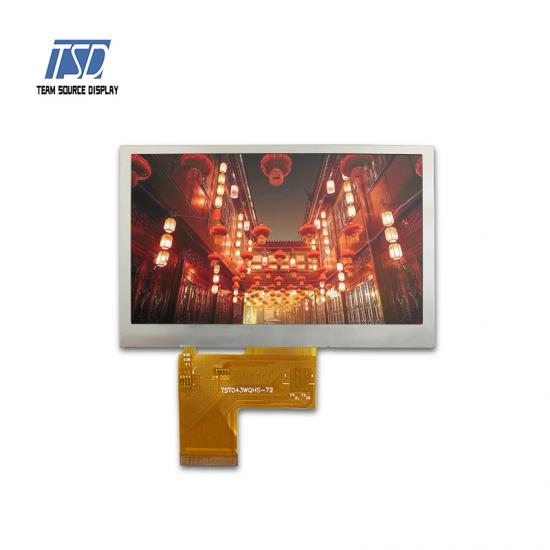

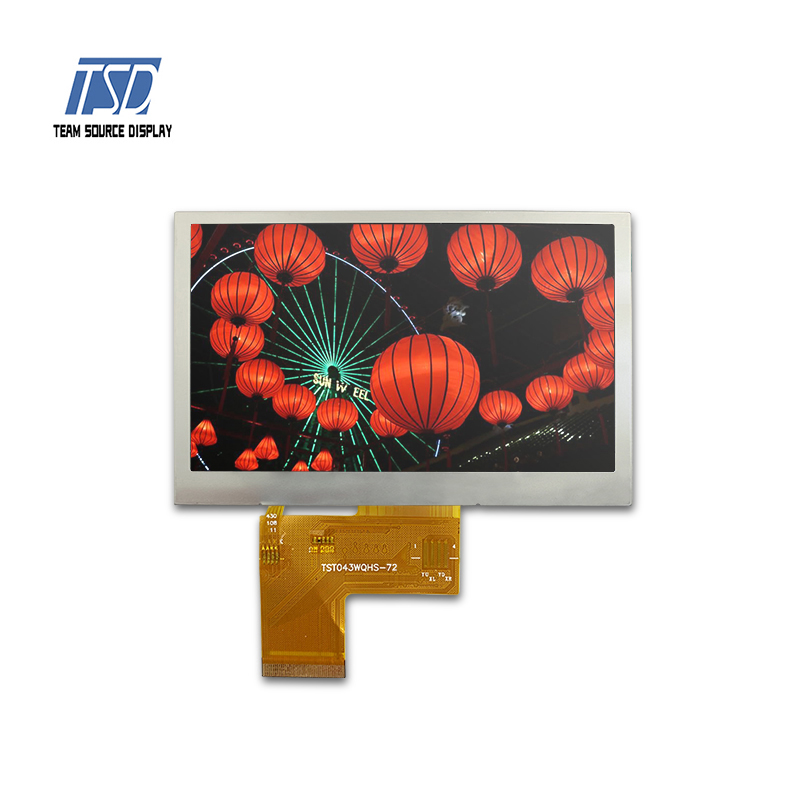

TSD 4.3 inch 480x272 tft lcd display with SSD1963 and CTP

  • Model Name: TSM043WQHS-72C
  • LCD Type: 4.3 inch TFT LCD display
  • Resolution: 480x272
  • Viewing angle: All o'clock
  • Brightness: 630 cd/m2
  • Driver IC: SSD1963
  • Interface: MCU 8/16 bits
  • Touch Screen: with capacitive touch panel
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃

Description:

TSM043WQHS-72C is 4.3 inch 480x272 MCU 8/16 bits interface LCD display module with capacitive touch panel in industrial grade, It could be used for HMI and access control. The brightness is 630 nits, White LEDs is 12, backlight current is 40mA and backlight voltage is 18.6V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is SSD1963, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

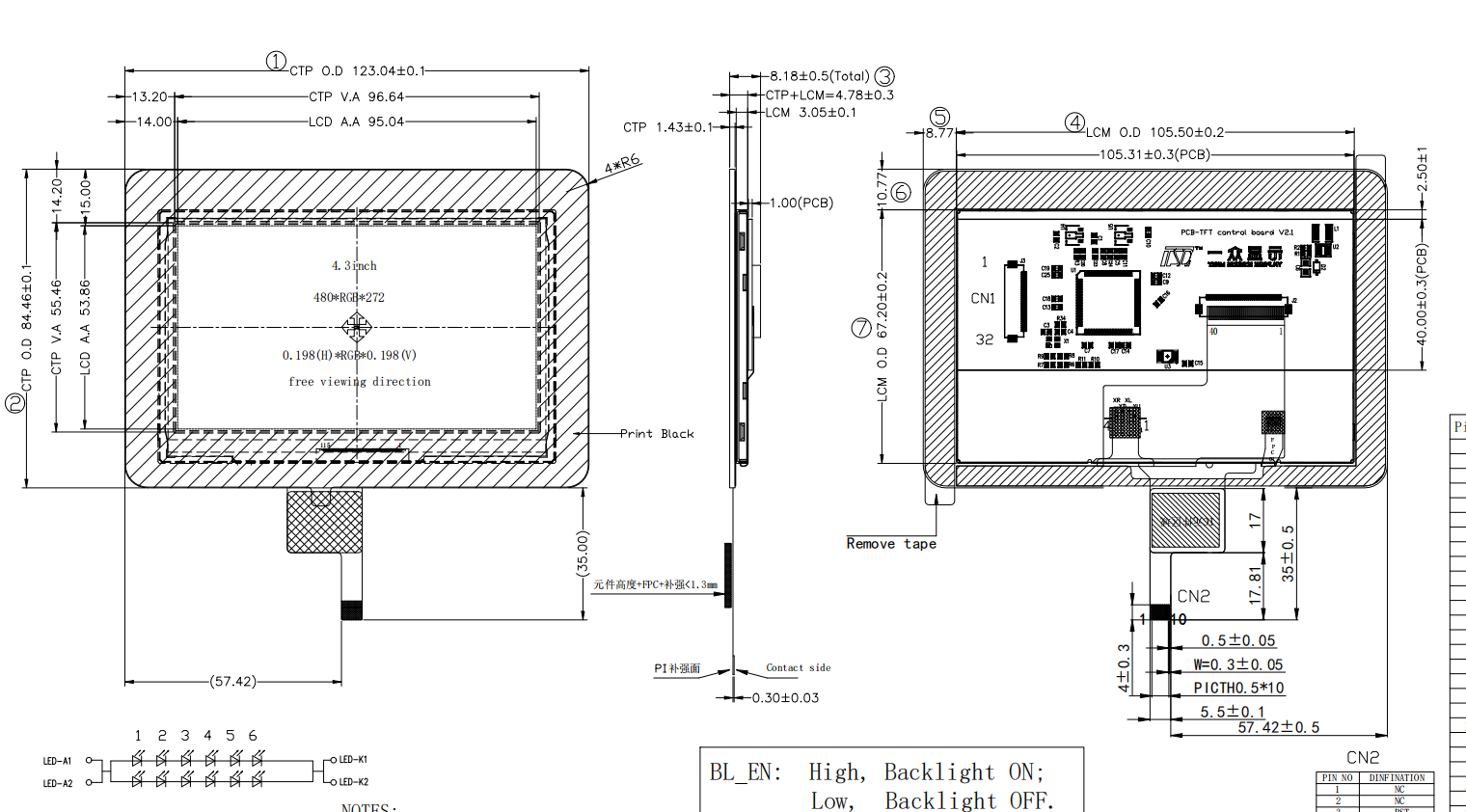

Drawing:




Specifications:



General Specification
Part No.  TSM043WQHS-72C
Outline Dimension(mm)  123.04x84.46x8.18
Active Area(mm) 95.04x53.86
Resolution(dots) 480x272
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Number of Pixel(pixels) 480(H)xRGBx272(V)
Touch panel  with CTP
Driver IC SSD1963
Pixel arrangement RGB-stripe
Display mode Normal black,IPS, 4.3 inch TFT
Surface treatment Antiglare
View direction  All
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Interface MCU 8/16 bit interface
Module lifetime(Hours) 30,000





Pins Description
Pin No.  Symbol Description
1 GND System Ground (0V)
2 VCC Power supply (5.5V)
3 BL-EN High, backlight on. Low, backlight off
4 RS Data/Command selection pin
5 WR Write signal
6 RD Read signal
7-22 DB0-DB15 MCU 16 bit data bus
23-24 NC No connect
25 CS Chip select signal
26 RST Reset input signal
27-31 NC No connect
32 DISP Standby mode control. (Normally pull high). DISP="L", enter standby mode for saving power. Timing controller and source driver will turn off, all outputs are Hi-Z. DISP="H", normal operation.




Applications:



For our 4.3 inch 480x272 TFT LCD display model TSM043WQHS-72C, it could be with touch panel and normally used in outdoor products.


Product Features:



This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
