Description:
TSM043WQHS-72P is 4.3 inch 480x272 MCU 8/16 bits interface LCD display module in industrial grade, It could be used for HMI and access control. The brightness is 670 nits, White LEDs is 12, backlight current is 40mA and backlight voltage is 18.6V, which could be customized. For this 4.3 inch TFT LCD module, driver IC is SSD1963, viewing direction is free, all o'clock, color depth is 16.7M, white backlight and transmissive mode.

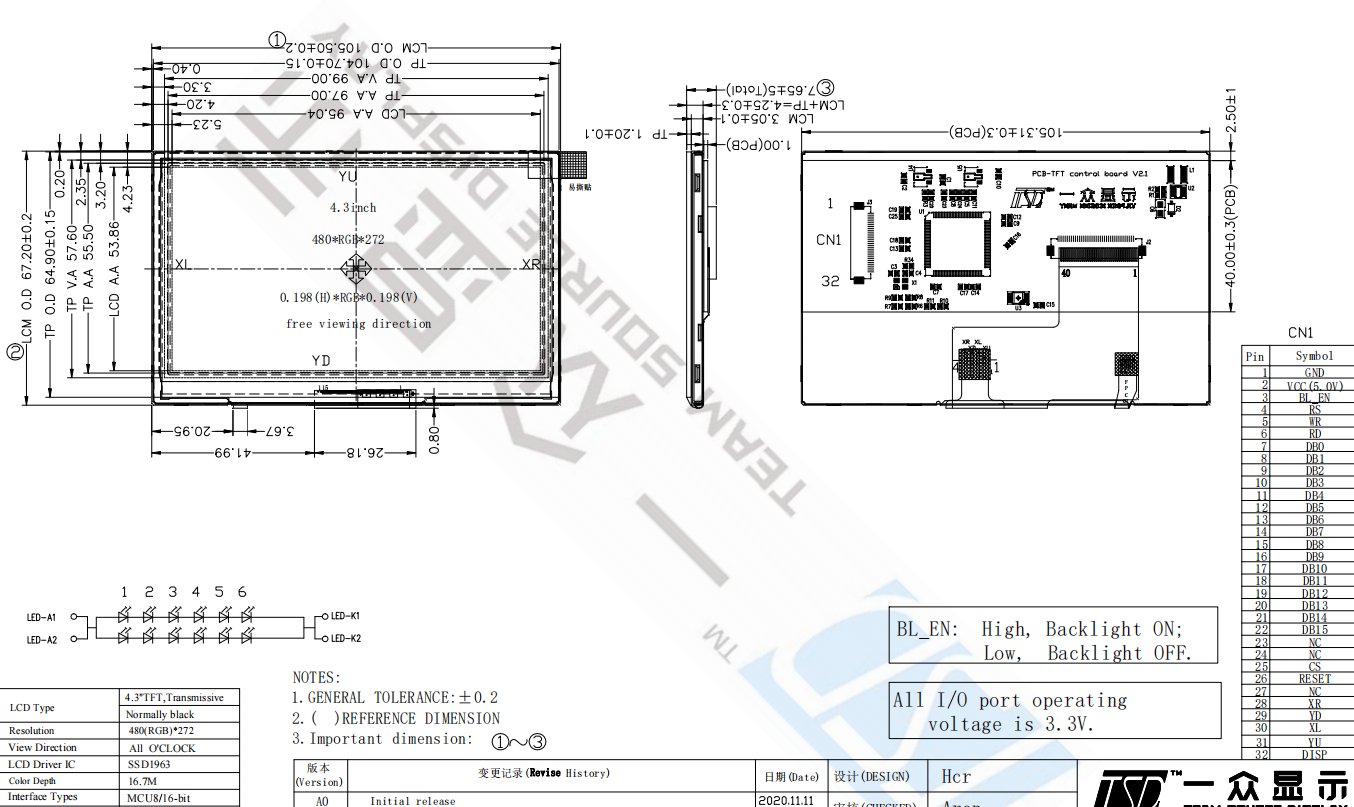

Drawing:
Specifications:
| General Specification | ||
| Part No. | TSM043WQHS-72P | |
| Outline Dimension(mm) | 105.50x67.20x4.25 | |
| Active Area(mm) | 95.04x53.86 | |
| Resolution(dots) | 480x272 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 480(H)xRGBx272(V) | |
| Touch panel | with RTP | |
| Driver IC | SSD1963 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 4.3 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MCU 8/16 bit interface |
|
| Module lifetime(Hours) | 30,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | GND | System Ground (0V) |
| 2 | VCC | Power supply (5.5V) |
| 3 | BL-EN | High, backlight on. Low, backlight off |
| 4 | RS | Data/Command selection pin |
| 5 | WR | Write signal |
| 6 | RD | Read signal |
| 7-22 | DB0-DB15 | MCU 16 bit data bus |
| 23-24 | NC | No connect |
| 25 | CS | Chip select signal |
| 26 | RST | Reset input signal |
| 27 | NC | No connect |
| 28 | XR | The touch panel X right |
| 29 | YD | The touch panel Y down |
| 30 | XL | The touch panel X left |
| 31 | YU | The touch panel Y up |
| 32 | DISP | Standby mode control. (Normally pull high). DISP="L", enter standby mode for saving power. Timing controller and source driver will turn off, all outputs are Hi-Z. DISP="H", normal operation. |
Applications:
For our 4.3 inch 480x272 TFT LCD display model TSM043WQHS-72P, it could be with touch panel and normally used in outdoor products.
Product Features:
This display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that could be used in many applications. This module is composed of a FOG, a driver-circut, and a back-light unit.The resolution of a 4.3" contains 480x272 dots and can display up to 16.7M colors.
