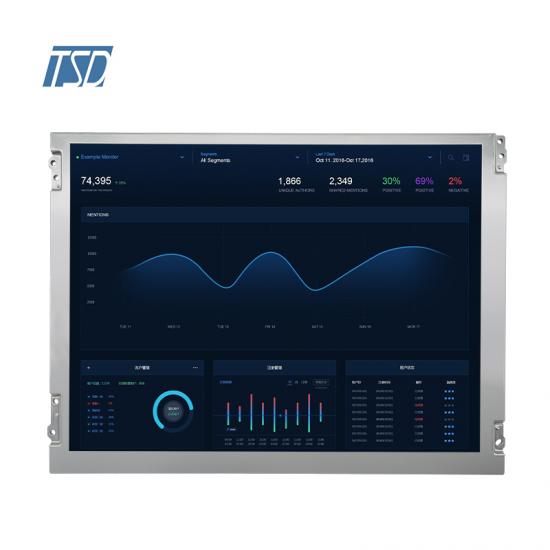

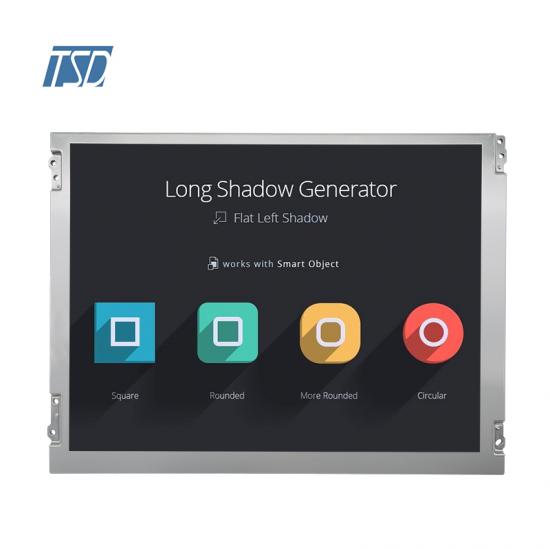

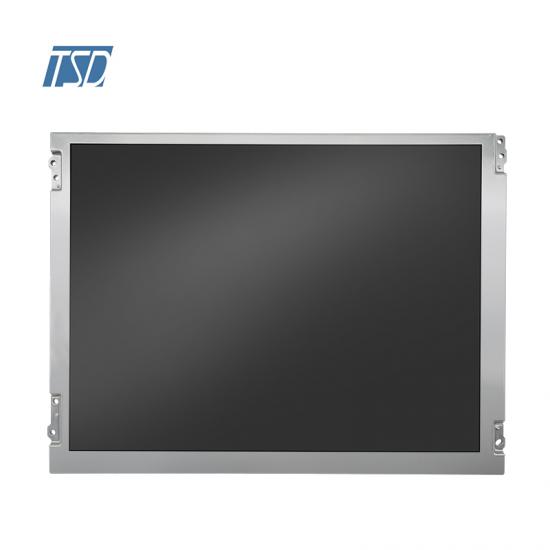

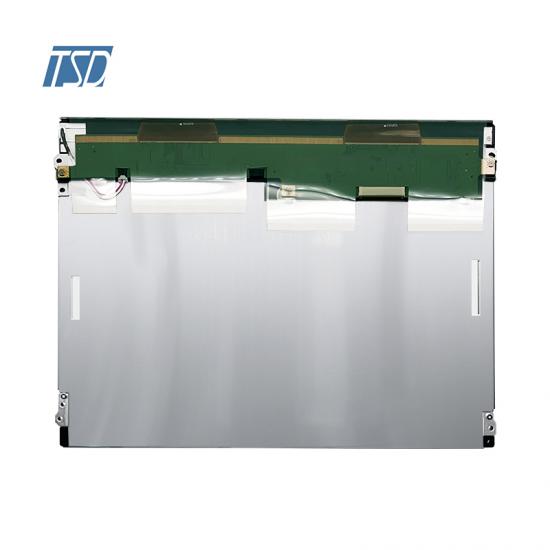

TSD LVDS interface tn lcd screen 12.1 inch tft lcd module 800x600 resolution

  • Model Name: TST121SVTM-07
  • LCD Type: 12.1 inch TFT LCD display module
  • Resolution: 800x600
  • Viewing angle: 12 o'clock
  • Brightness:350 cd/m2
  • Interface: LVDS
  • Touch Screen: Available with RTP&CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃





Description:



Team Source Display model TST121SVTM-07 is a standard 12.1'' color TFT LCD, normally white with transmissive type TN panel,

800x6000 resolution,  12H viewing angle, LVDS interface, 16.2M/262K color depth, Anti-glare surface treatment.

with RTP& CTP available, 350nits brightness.

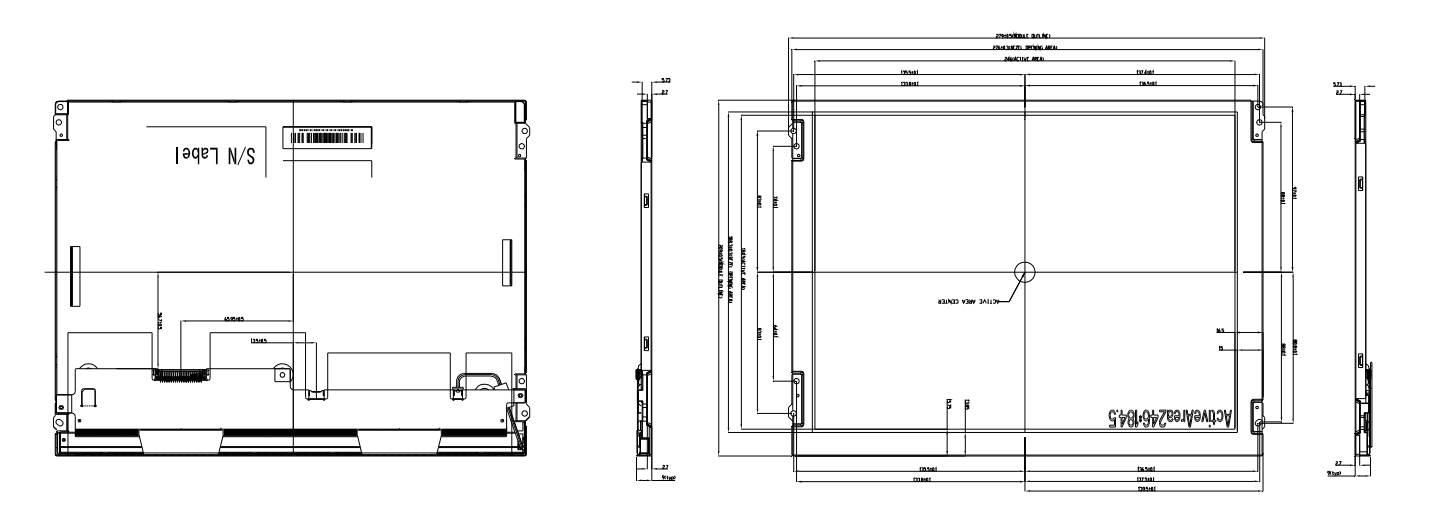

Drawing:




Specifications:



General Specification
Display mode
12.1'' TFT, Transmissive, Normal white,TN,
Part No.  TST121SVTM-07
Outline Dimension(mm)

279(W)x209(H)x5.73(D)

Active Area(mm) 246(W) x 184.5(H)
Resolution(dots) 800x (RGB) × 600
Operating temperature(°C) -20 ~ +70°C
Storage temperature(°C) -30 ~ +80°C
Operating Voltage
3.3V
Touch panel  without
Pixel arrangement RGB-stripe
View direction  12H
Interface TTL(RGB 24bits)
Brightness 350
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition

connector: MSB240420HE(Produced by STM) or equivalent

Pin No.  Symbol Description
1 VCC 3.3V Power Supply
2 VCC 3.3V Power Supply
3 GND Ground
4 6-8Bit SEL Select 6 or 8 Bits LVDS Input (VCC:8Bits ; GND/NC: 6Bits)
5 RINO- Negative(-) LVDS differential data input
6 RINO+ Positive(+) LVDS differential data input
7 GND Ground
8 RIN1- Negative(-) LVDS differential data input
9 RIN1+

Positive(+) LVDS differential data input

10 GND Ground
11 RIN2- Negative(-) LVDS differential data input
12 RIN2+

Positive(+) LVDS differential data input

13 GND Ground
14 CLKIN- Clock Signal(-)
15 CLKIN+ Clock Signal(+)
16 GND Ground
17 RIN3-
Negative(-) LVDS differential data input (Used for 8Bits LVDS Input; NC for 6Bits)
18 RIN3+ Positive(+) LVDS differential data input (Used for 8Bits LVDS Input; NC for 6Bits)
19 REVERSE
Display Reversed Function (VCC: Display Reverse: GND/NC: Normal Display
20 NCIGND Test Function Pin( Do not set this pin to High)




Applications:



For this 12.1 inch TFT LCD display -TST121SVTM-07 800x600resolution, suitable for Industrials Equipment,

Medical devices, Household appliances, consumer products.






Product Features:



1. 800x600 12.1'' LCD with LVDS 40pin.

2. Different brightness versions.

3. Available with RTP&CTP.
