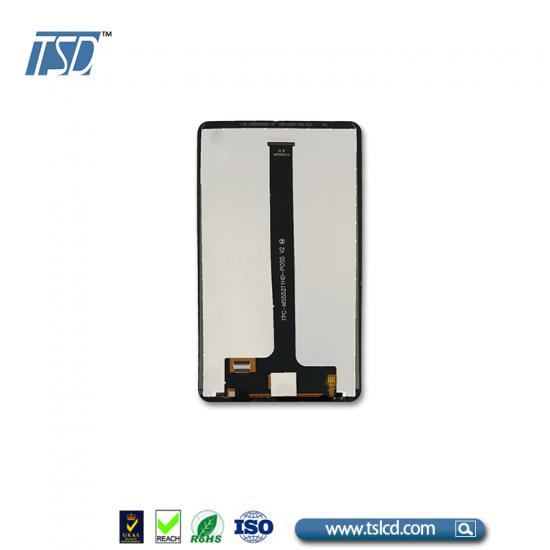

TSD 5.5 inch IPS lcd 720*1280 MIPI interface



  • Model Name: TST055HDBS-04
  • LCD Type: 5.5 inch TFT LCD display
  • Resolution: 720*1280
  • Viewing angle: IPS all viewing angle
  • Brightness: 380 cd/m2
  • Driver IC: ST7703
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST055HDHI-04 is 5.5  inch 720*1280 resolution LCD display with MIPI interface, standard brightness is 440cd/m2. For this 5.5 inch TFT LCD module, driver IC is ST7703, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. this 5.5 inch lcd is suitable for handheld devices. such as Pos machine. etc



Specification
Part No. TST055HDHI-04
Outline Dimension(mm) 71*129.6*1.62
Active Area(mm) 68.04*120.96
Resolution(dots) 720*RGB*1280
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 720RGB(H)xRGBx1280(V)
Touch panel Capacitive touch
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal white,IPS, 5.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Weight(g) TBD
Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface Digital
Module lifetime(Hours) 50,000-100,000



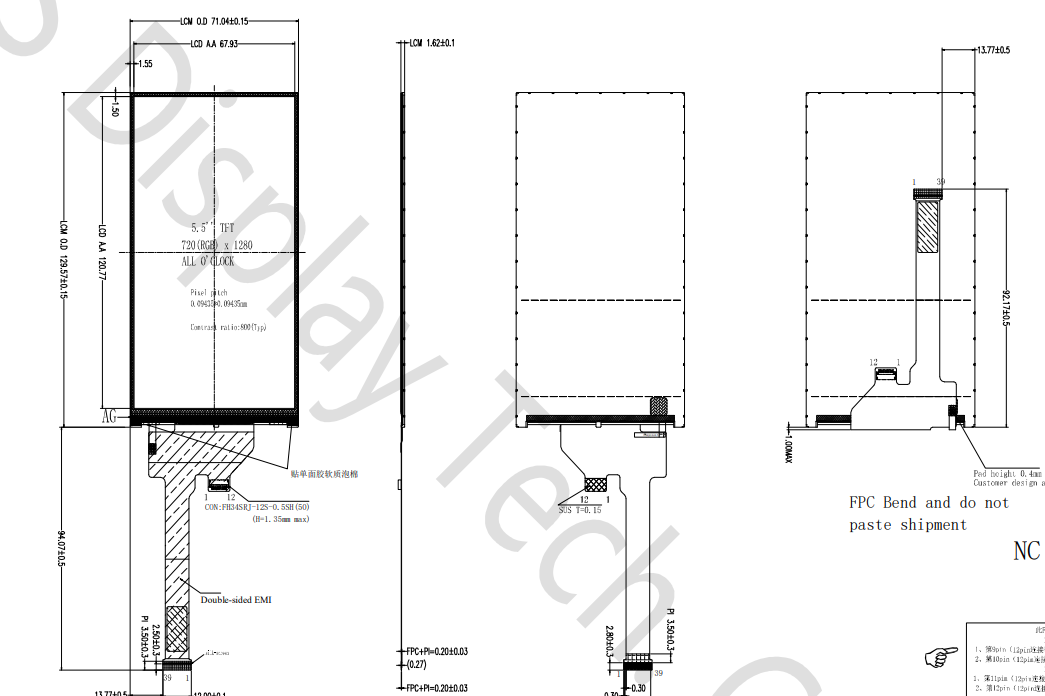

Drawing:





Interface Description:



Pin No.  Symbol I/O Description
1 GND P Ground
2 TP_1V8 P Power supply 1.8V
3 TP_2V85 P Power supply 2.85V
4 GND P Ground
5 TP_SCL I CTP I2C clock input
6 TP_SDA I/O CTP 12C data input/output
7 GND P Ground
8 TP_INT O CTP interrupt signal output pin
9 TP_RST I CTP reset signal input pin
10 C4B - TBD
11 C5A - TBD
12 C5B - TBD
13 C4B_A - TBD
14 GND P Ground
15 2V85 P Power supply 2.85V
16 1V8 P Power supply for l/O interface, 1 .8V
17 GND P Ground
18 ID P LCD Identification pin
19 RST P Reset signal
20 TE O Frame Sync signal
21 GND P Ground
22 D1P I/O Data differential signal input pins.(Data lane 1)
23 D1N I/O Data differential signal input pins.(Data lane 1)
24 GND P Ground
25 CLKP I/O Clock differential signal input pins
26 CLKN I/O Clock differential signal input pins
27 GND P Ground
28 DOP I/O Data differential signal input pins.(Data lane 0)
29 DON I/O Data differential signal input pins.(Data lane 0)
30 GND P Ground
31 D2P I/O Data differential signal input pins.(Data lane 2)
32 D2N I/O Data differential signal input pins.(Data lane 2)
33 GND P Ground
34 D3P I/O Data differential signal input pins.(Data lane 3)
35 D3N I/O Data differential signal input pins.(Data lane 3)
36 GND P Ground
37 LEDK P Back-light Cathode
38 LEDA P Back-light Anode
39 GND P Ground

Applications:



For our 5 inch LCD display TST055HDBS-04, it's widely using in handheld device.

Product Features:

1.5.5 inch 720*1280res. with 39pins MIPI interface

2. IPS lcd : full viewing angle

3.high brightness up to 450nits

4.Vertical lcd type with capacitive touch

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
