Description:
TST070WUIF-198C is 7 inch 1200x1920 IPS TFT LCD module with MIPI interface, incell touch screen design. It's IPS panel with full view angle. Outline dimension is 98.76x160.86x3.64mm. Active area is 94.50x151.20mm. Driver IC is FT8206, operating voltage is 2.8V~3.3V. Working temperature is -20 to 70℃, storage temperature is -30 to +80℃.

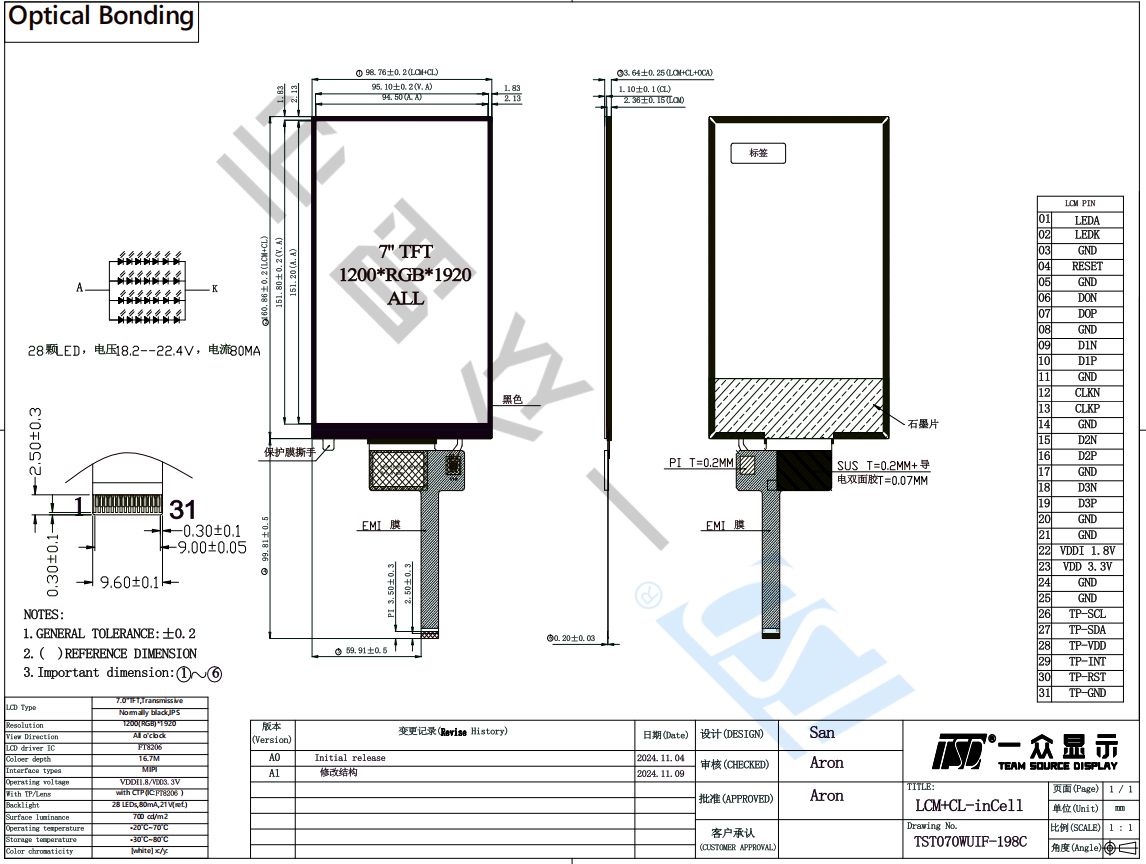

Drawing:
Specifications:
| General Specification | ||
| Part No. | TST070WUIF-198C | |
| Outline Dimension(mm) | 98.76x160.86x3.64 | |
| Active Area(mm) | 94.50x151.20 | |
| Resolution(dots) | 1200x1920 | |
| Operating temperature(°C) | -20 ~ +70°C | |
| Storage temperature(°C) | -30 ~ +80°C | |
| Number of Pixel(pixels) | 1200(H)xRGBx1920(V) | |
| Touch panel | with incell touch | |
| Driver IC | FT8206 | |
| Pixel arrangement | RGB-stripe | |
| Display mode | Normal black,IPS, 10.1 inch TFT | |
| Surface treatment | Antiglare | |
| View direction | All |
|
| Weight(g) | TBD | |
| Power Consumption(w) | Panel | TBD(Typ.) |
| B/L system | TBD(Typ.) | |
| Interface | MIPI | |
| Module lifetime(Hours) | 30,000-40,000 | |
| Pins Description | ||
| Pin No. | Symbol | Description |
| 1 | LEDA | Backlight Anode input pin |
| 2 | LEDK | Backlight Cathode input pin |
| 3 | GND | Ground |
| 4 | RESET | LCD Reset input signal |
| 5 | GND | Ground |
| 6 | D0N | MIPI Negative data input Lane0 |
| 7 | D0P | MIPI Positve data input Lane0 |
| 8 | GND | Ground |
| 9 | D1N | MIPI Negative data input Lane1 |
| 10 | D1P | MIPI Positve data input Lane1 |
| 11 | GND | Ground |
| 12 | CLKN | MIPI Negative clock input clock |
| 13 | CLKP | MIPI Postive clock input clock |
| 14 | GND | Ground |
| 15 | D2N | MIPI Negative data input Lane2 |
| 16 | D2P | MIPI Positve data input Lane2 |
| 17 | GND | Ground |
| 18 | D3N | MIPI Negative data input Lane3 |
| 19 | D3P | MIPI Positve data input Lane3 |
| 20~21 | GND | Ground |
| 22 | VDDI 1.8V | Digital power supply |
| 23 | VDD 3.3V | Digital power supply |
| 24~25 | GND | Ground |
| 26 | TP_SCL | Touch SPI interface clock input pin |
| 27 | TP_SDA | Touch SPI interface data pin |
| 28 | TP_VDD(NC) | No connect |
| 29 | TP_INT | External interrupt pin for host interrupt |
| 30 | TP_RST | Touch circuit external reset. Low assertive |
| 31 | TP_GND | TP_Power ground |
Applications:
Our 7 inch color TFT LCD is specifically designed for industrial, medical and smart home applications, this compact yet robust display delivers clear visibility, high brightness (optional), and wide viewing angles, ensuring critical information (speed, battery level, navigation, etc.) remains readable in various lighting conditions.
Key Features for Vehicle Integration:
✔ Sunlight Readability: High-luminance options (up to 1200 nits) for outdoor visibility
✔ Temperature Range (-20°C to +70°C or custom) for reliable operation in all climates
✔ Vibration & Shock Resistant: Reinforced structure for durability on rough roads
✔ Custom Interface: Supports MIPI interface; can display speedometer, battery icons, warning indicators, etc.
