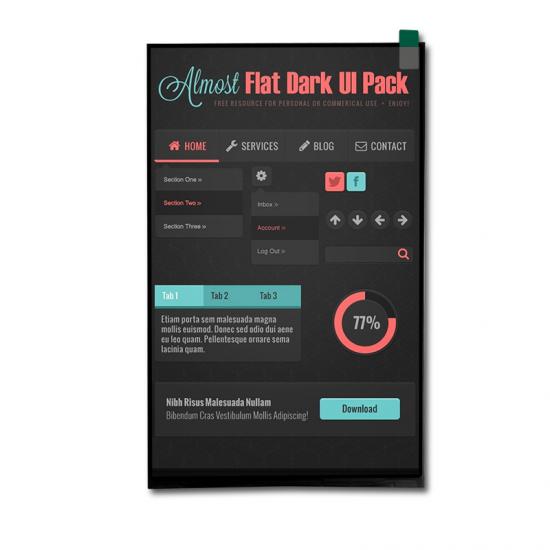

TSD 1200x1920 resolution 10.1 inch IPS lcd display with mipi interface with capacitive touch



  • Model Name: TST101WUIH-79C
  • LCD Type: 10.1 inch TFT LCD display
  • Resolution: 1920*1200
  • Viewing angle: IPS all viewing angle
  • Brightness: 250 cd/m2
  • Interface: MIPI
  • Touch Screen: with CTP
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃











Description:

TSD TFT item number TST101WUIH-79C is 10.1 inch, IPS TFT LCD, 1200*1920 resolution, contrast ratio 3000:1, super thin LCD panel suitable for advertizing/monitor/ tablet application. LVDS inetrface TFT lcd module, can do with touch panel. also can support customized Cover lens with your ideal logo.



Specification
LCD type 10.1 inch ips display
Display type 10.1 inch TFT, 16.7M color, normally black
Driver element color active matrix thin film transistor
Viewing angle All
Outline Dimension(mm) 143.10(W)*228.60(H)*2.50(T)
Active Area.(mm) 135.36(H)x216.576(V)
Resolution(dots) 1200xRGBx1920
Operating Voltage 3.3V
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Pixel arrangement  RGB Vertical Stripe
Display mode Normally white
Luminance(cd/m2) 250(typ.)
Contrast Ratio 500(typ.)
Application Notebook, advertisement display, etc.
Number of pins 40
Interface  MIPI
Module lifetime(Hours) 50,000-100,000



Drawing:



Interface Description:

Pin No.  Symbol Description
1 NC No connect
2 VDD Power voltage for digital circuit
3 VDD Power voltage for digital circuit
4 GND Ground
5 RESET Global reset pin
6 NC No connect
7 GND Ground
8 MIPI D0N Negative MlPI differential data input
9 MIPI D0P Positive MIPI differential data input
10 GND Power ground
11 MIPI D1N Negative MIPI differential data input
12 MIPI D1P Positive MIPI differential data input
13 GND Power ground
14 MIPI CLKN Negative MIPI differential data input
15 MIPI CLKP Positive MIPI differential data input
16 GND Power ground
17 MIPI D3N Vegative MlPI differential data input
18 MIPI D2P Positive MIPI differential data input
19 GND Power ground
20 MIPI D3N Negative MIPI differential data input
21 MIPI D3P Positive MIPI differential data input
22 GND Power ground
23 NC No connect
24 NC No connect
25 GND Power ground
26-29 CLKN No connect
30 GND Ground
31-32 LED- LED Cathlde
33-38 NC No connect
39-40 LED+ LED Anode

Applications:



For our 10.1 inch LCD display TST101WUIH-79C, it's widely using in handheld device.

Product Features:

1.10.1 inch 1200*1920res. with 40pins MIPI interface

2. IPS lcd : full viewing angle

3.FHD high definition

4.Vertical lcd type with capacitive touch

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
