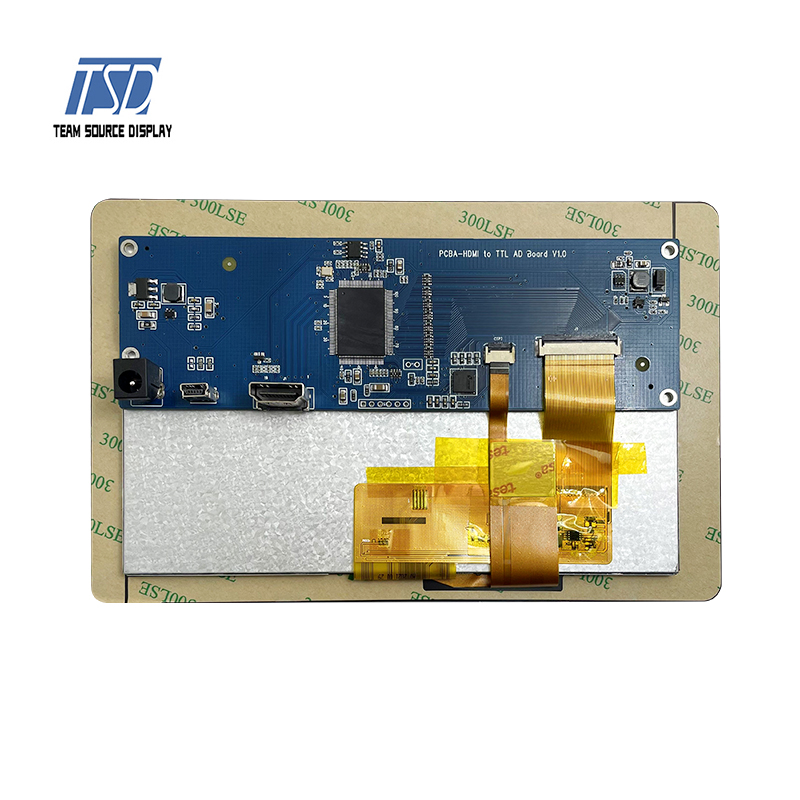

7 inch 800*480 res.TFT LCD with HDMI board easy connect to PC and Raspberry Pi

7 inch 800×480 resolution tft touch screen, with HDMI and USB port

Plug-and-play, available to connect with Rasperry Pi directly

Inquiry now

7 inch TFT LCD touch screen with HDMI interface

Specification
Part No.	TSM070WVBE-101C
Outline Dimension(mm)	164.9x100.0x6.7
Display Area(mm)	154.08x85.92
Resolution(dots)	WVGA, 800RGB480
Operating temperature(°C)	-20-70
Storage temperature(°C)	-30-80
Number of Pixel(pixels)	800RGB(H)xRGBx480(V)
Touch panel	94% transmittance
Dot Pitch	0.0642(W)x0.1790(H)
Pixel arrangement	RGB Vertical stripe
Display mode	Normal white,Transmissive, 7 inch TFT
Surface treatment	Antiglare
View direction	12H
Weight(g)	TBD
Power Consumption(w)	Panel	0.226(Typ.)
	B/L system	1.674(Typ.)
Interface	HDMI
Touch screen	with Capacitive touch screen

Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
