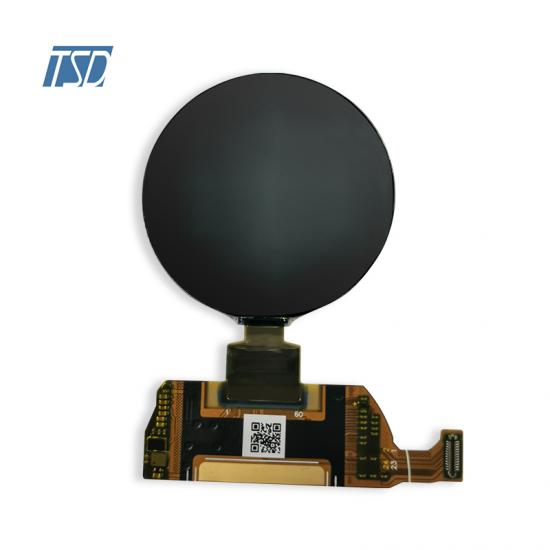

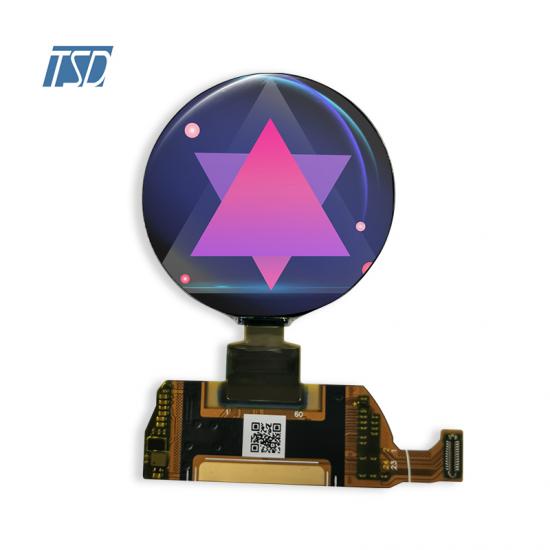

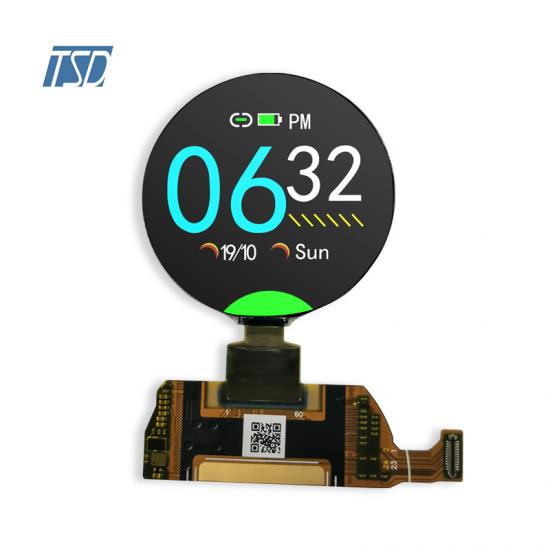

TSD 1.4 inch AMOLED display 454*454 dots OLED round display



  • Model Name: TSO014VGHR-01
  • Type: 1.4 OLED Display
  • Display Color: 16.7M
  • Dot Matrix: 454*454 dots
  • Driver IC: RM69330
  • Interface:  MIPI/SPI
  • Dot Pitch: 78x78mm
  • Operating Temperature: -20 ~ +60℃
  • Storage Temperature: -30 ~ +70℃

Description:



Team Source Display model TSO014VGHR-01 is an AMOLED round display module with 45x454 dot matrix. MIPI/SPI interface. high technology for low power consumption without backlight.  high brightness, self-emission, high contrast ratio, slim/thin outline, wide viewing angle, and available to add with touch screen or cover glass on top.

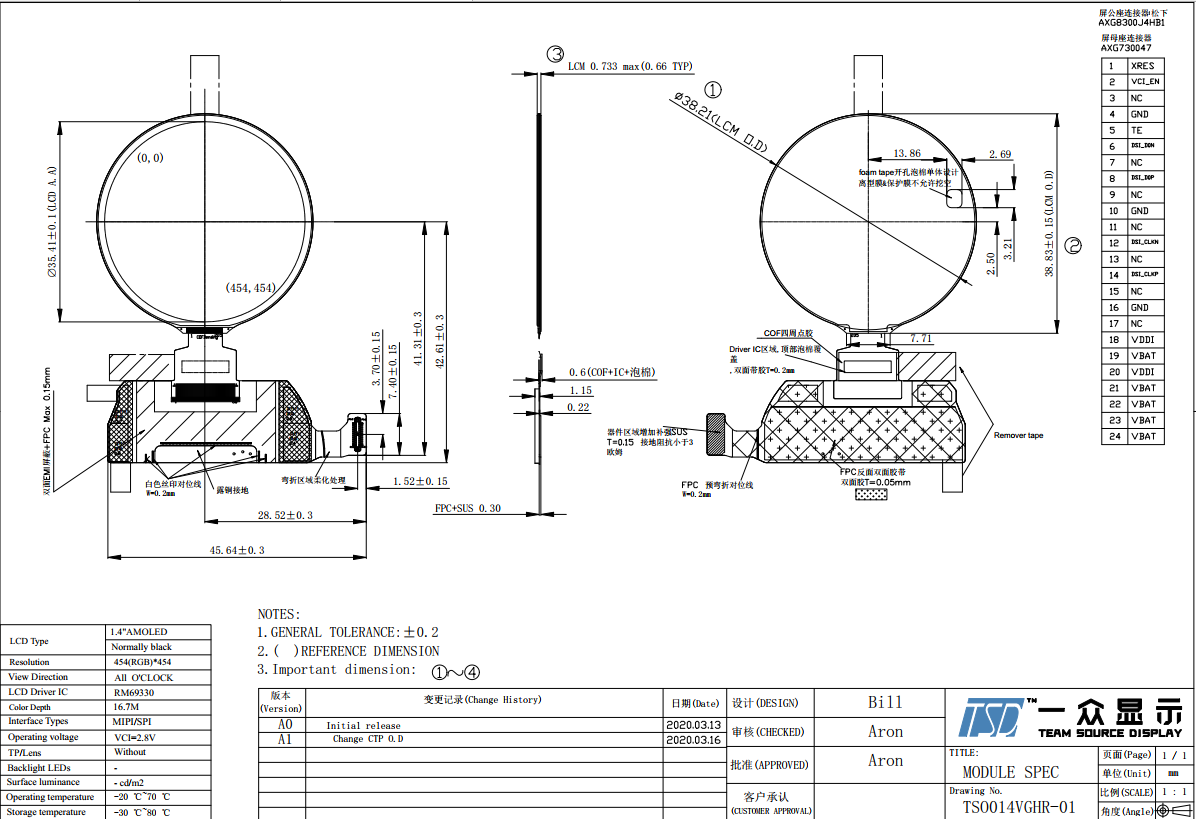

Drawing:

Specifications:



General Specification
Display mode
1.4'' AMOLED Display
Part No.  TSO014VGHR-01
Outline Dimension(mm)

38.83(W)x38.21(H)x0.68(D)

Active Area(mm) 35.412(W) x 35.412(H)
Resolution(dots) 454×454 dots
Display Color 16.7M
Operating temperature(°C) -20 ~ +60°C
Storage temperature(°C) -30 ~ +70°C
Operating Voltage
3.3V
Touch panel  could support with cover glass and touch screen
Driver IC RM69330
Interface MIPI/SPI
Dot size 78x78
Weight(g) TBD
Power Consumption(w) Panel TBD(Typ.)
B/L system TBD(Typ.)
Module lifetime(Hours) 30,000-50000





LCM interface definition



1 Reset This signal will reset the device and must be applied to properly initialize the chip. Active low.
2 VCI_EN This signal enables Power IC's Driver lC analog supply
3 NC Not connect
4 TE Tear effect output
5 GND The power ground
6 DSI_D0N  MIPI DSI data0-
7 CSX SPl Chip select input pin("Low" enable)
8 DSI_D0P MIPI DSI data0+
9 SCL SPI Serial clock
10 GND
The power ground
11 DCX SPI CMD/Data selection signal
12 DSI_CLKN
MIPI DSI clock-
13 SDI SPl input signal
14 DSI_CLKP
MIPI DSI clock+
15 SDO SPl Output signal
16 GND The power ground
17 NC Not connect
18 VDDI
Driver lc digital I/O supply
19 VBAT
Power IC supply
20 VDDI
Driver lc digital I/O supply
21 VBAT
Power IC supply
22 VBAT
Power IC supply
23 VBAT
Power IC supply
24 VBAT
Power IC supply




Applications:



For this 1.4inch round OLED Display 454x454 resolution, suitable for Smart wearable devices,

Medical devices, Household appliances, Handheld devices and Consumer products.






Product Features:



1. Low power consumption.

2. High contrast ratio.












Get A Quote
If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
