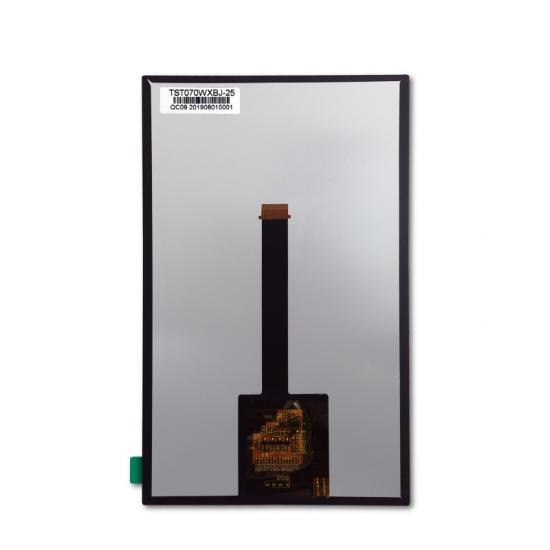

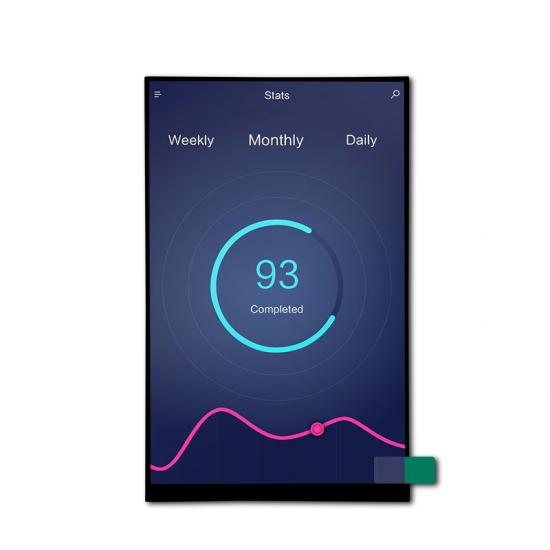

TSD 7 inch 800*1280 IPS TFT LCD display module with MIPI interface

  • Model Name: TST070WXBJ-25
  • LCD Type: 7 inch TFT LCD display
  • Resolution: 800*1280
  • Viewing angle: IPS all viewing angle
  • Brightness: 450 cd/m2
  • Driver IC: JD9366AB
  • Interface: MIPI
  • Touch Screen: without
  • Operating Temperature: -20 ~ +70℃
  • Storage Temperature: -30 ~ +80℃



Description:



TST070WXBJ-25 is 7 inch 800*1280 resolution LCD display with MIPI interface, standard brightness is 400cd/m2. For this 7 inch TFT LCD module,  Driver IC is JD9366AB, viewing direction is Free. color depth is 16.7M, operating voltage is 3.3V,  this lcd module can be with resistive or capacitive touch panel, customized design are also welcome. This 7 inch tft lcd is suitable used in Handheld device, Pos Machine.Scanner.





Specification
Part No. TST070WXBJ-25
Outline Dimension(mm) 99.85x161.7x2.6
Active Area(mm) 94.2x150.72
Resolution(dots) 800*RGB*1280
Operating temperature(°C) -20-70
Storage temperature(°C) -30-80
Number of Pixel(pixels) 800RGB(H)xRGBx1280(V)
Touch panel without touch
Dot Pitch 0.03925(W)x0.11775(H)
Pixel arrangement RGB Vertical stripe
Display mode Normal black, IPS, 7.0 inch TFT
Surface treatment Antiglare
View direction  ALL
Brightness 400 cd/m2
Interface MIPI
Module lifetime(Hours) 50,000-100,000

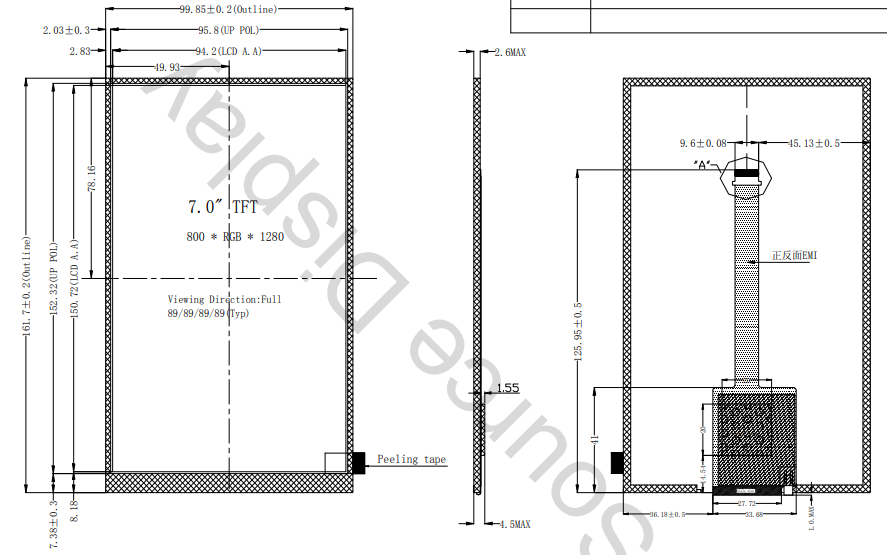

Drawing:

Interface Description:

Pin No.  Symbol Description
1 VLEDK LED Cathode
2 VLEDK LED Cathode
3 VLEDK LED Cathode
4 VLEDK LED Cathode
5 NC No connect
6 LEDA LED Anode
7 LEDA LED Anode
8 LEDA LED Anode
9 GND Ground
10 NC Not connect
11 VCC3V3 Power supply
12 VCC3V3 Power supply
13 VDD1V8 I/O power supply
14 NC Not connect
15 LCD RESET Reset signal
16 GND Ground
17 MIPI D3 DP MIPI-DSI data Lane 3 positive-end input/output pin
18 MIPI D3 DP MIPI-DSI data Lane 3 negative-end input/output pin
19 GND Ground
20 MIPI D2 DP MIPI-DSI data Lane 2 positive-end input/output pin
21 MIPI D2 DN MIPI-DSI data Lane 2 nesitive-end input/output pin
22 GND Ground
23 MIPI CLK DP MIPI-DSI clock Lane positive-end input pin
24 MIPI CLK DN MIPI-DSI clock Lane negative-end input pin
25 GND Ground
26 MIPI D1 DP MIPI-DSI data Lane 1 positive-end input/output pin
27 MIPI D1 DN MIPI-DSI data Lane 1 nesitive-end input/output pin
28 GND Ground
29 MIPI DO DP MIPI-DSI data Lane 0 positive-end input/output pin
30 MIPI DO DN MIPI-DSI data Lane O negative-end input/output pin
31 GND Ground

Applications:

For our 7 inch LCD display TST070WXBJ-25, it's widely using in handheld device, Consumer electronics products.POS machine etc.

Product Features:

1. 7inch 800*1280res. with 31pins MIPI interface

2. IPS lcd : full viewing angle

3.high brightness up to 450nits

4.Vertical lcd type

5. TSD have full ranges of TFT display from 0.96 inch to 32 inch, customized design are warmly welcome.
